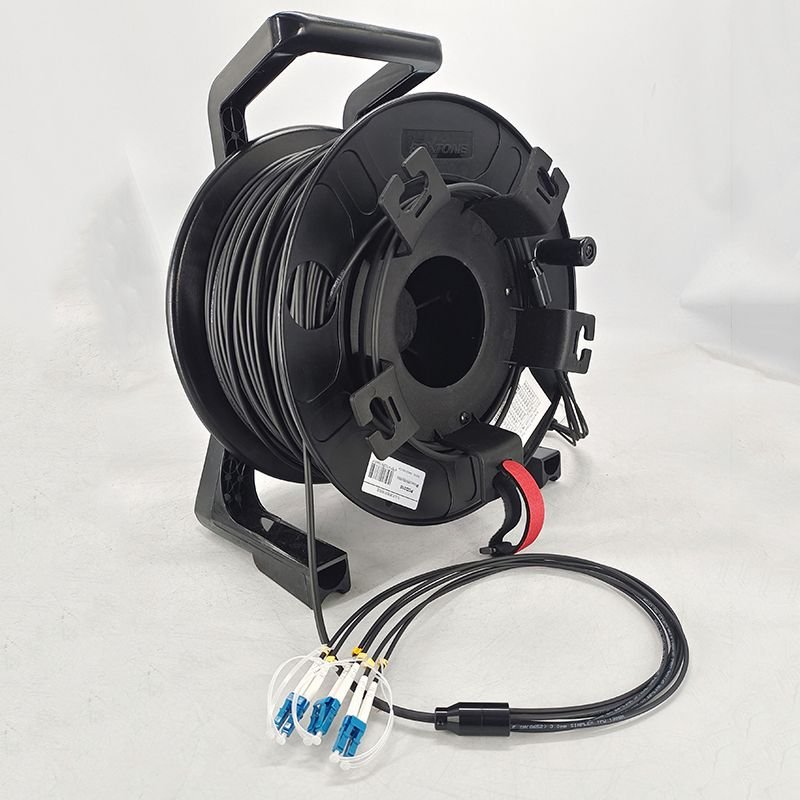

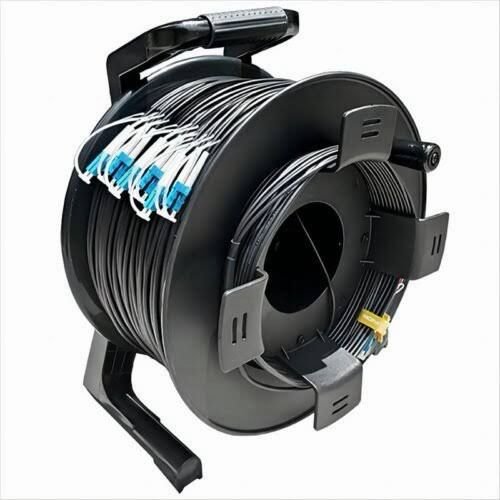

Studio Fiber Cable Drums
Studio Fiber Cable Drums
Studio fiber cable drums, or reels, are essential for storing, transporting, and deploying fiber optic cables in live broadcasting, production studios, and mobile production units. They ensure the fragile, high-capacity fiber cables are protected from damage, bending, or entanglement, and allow for efficient setup and breakdown.
Common Uses in Studio and Broadcasting:
Camera Connectivity (SMPTE): Used with hybrid SMPTE cables to connect cameras to studio converters or outside broadcast trucks, often covering distances up to 2km.
High-Definition Video Transport: Facilitates the transmission of 4K, 3D, and HD video signals, along with camera control (PTZ), tally, and intercom, through a single cable.
Live Events: Ideal for connecting equipment at large venues, concerts, and sports events where long cable runs are required.
Mobile Production (OB Vans): Facilitates fast deployment and retrieval of fiber lines.
Key Features of Studio Fiber Drums:
Rugged Protection: Many drums are made from robust materials like steel, aluminum, or specialized PE composites to withstand harsh environments.
Cable Safety: They prevent micro-bending and crushing, which can degrade or break the fiber.
Easy Handling: Often feature built-in handles, brakes, and sometimes wheels for easy transport.
Connector Protection: Specialized drums may include storage space for connector heads or have dust/water-sealed, ruggadized connectors (e.g., IP67).
Capacity: Available in various sizes, often holding 100m, 150m, or 200m of cable.
Common Types:
FieldCast/SMPTE Drums: Specific to professional camera systems.
Klotz FiberLink Drums: Used for mobile fiber optic cable deployment.
Roxtone PCD Series: Known for being unbreakable, lightweight, and suitable for long fiber cables.
